Description

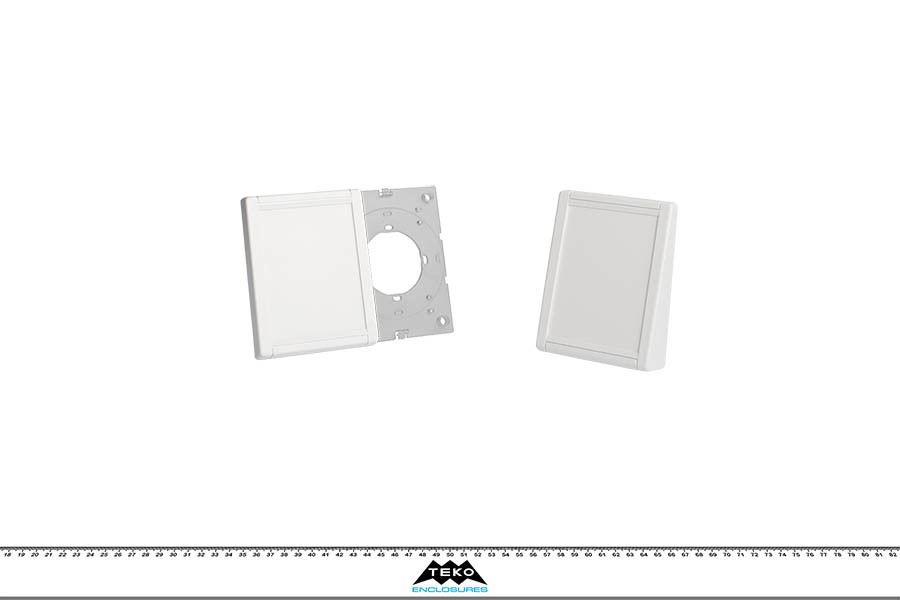

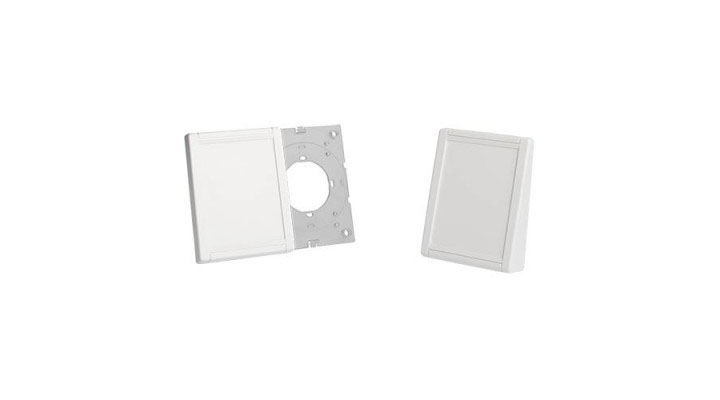

ABS enclosure with matt surface finish. On front side, 1,8 mm recessed area for keypad membrane or display. Base and cover have integral mounting studs for PCB. The bottom is manufactured by transparent Bayblend® and it is suitable for fixing on a 2 / 6-module standard box 503. Snap-on closing.
Products
| |
|---|---|

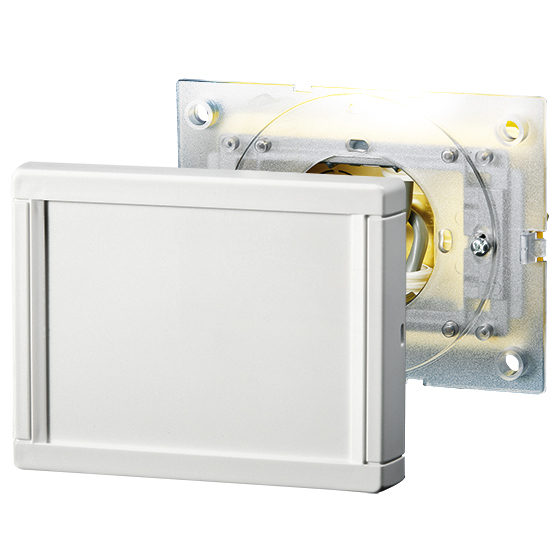

| Model | MTK-F.7 |
| L (mm) | 131 |
| W (mm) | 100,5 |
| H (mm) | 17,6 |
| Color (Ral) |
9002 |
| Material | FORMACROM 9249FC |
| MAX PCB L (mm) | 122 |
| MAX PCB W (mm) | 92 |
| Screws | |
| Battery | - |
| Accessories |
M53 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

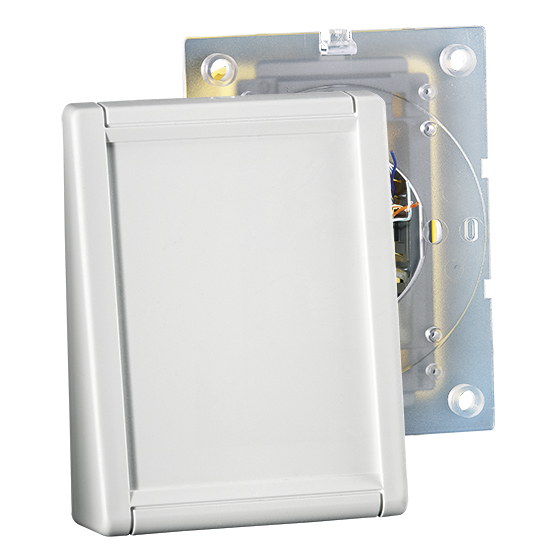

| Model | MTK-S.7 |
| L (mm) | 131 |
| W (mm) | 100,5 |
| H (mm) | 33,6 |
| Color (Ral) |
9002 |
| Material | FORMACROM 9249FC |
| MAX PCB L (mm) | 122 |
| MAX PCB W (mm) | 92 |
| Screws | |
| Battery | - |
| Accessories |
M53 |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
MTK-F.7 | 131 | 100,5 | 17,6 |
9002 |
FORMACROM 9249FC | 122 | 92 | - |
M53 |
PDF DWG |
View
|
|
|
|
MTK-S.7 | 131 | 100,5 | 33,6 |
9002 |
FORMACROM 9249FC | 122 | 92 | - |
M53 |
PDF DWG |
View
|
