Description

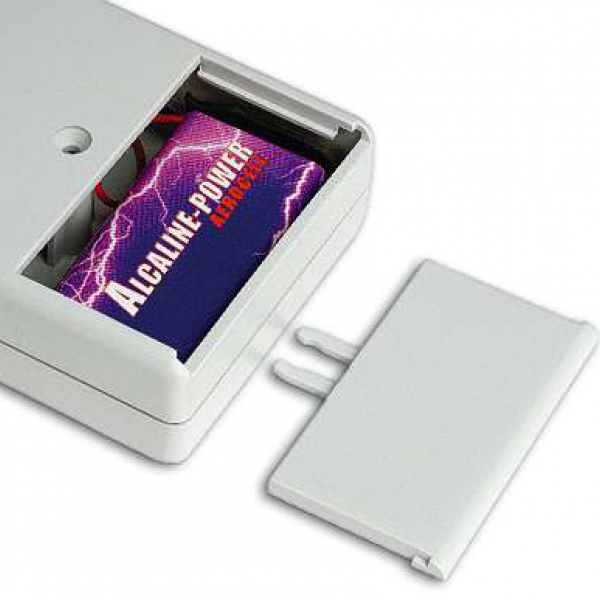

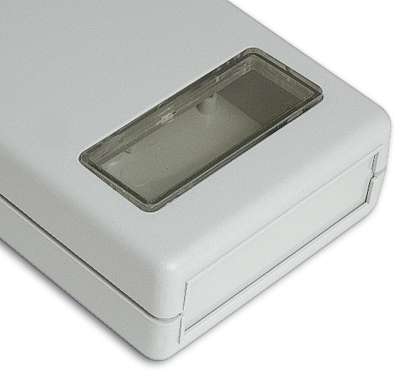

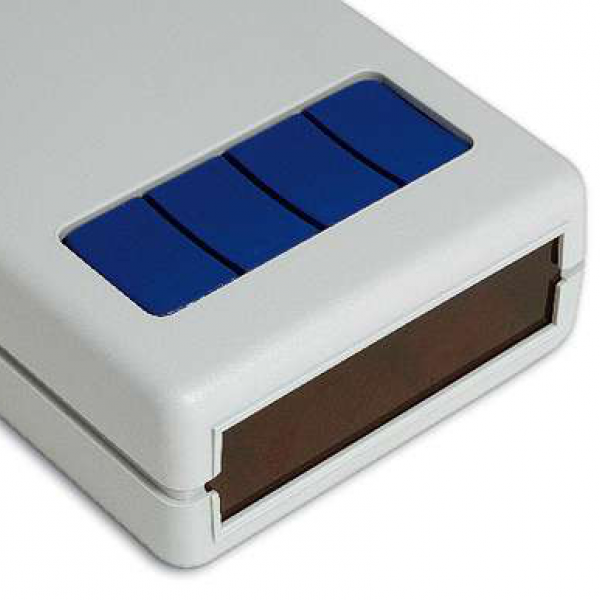

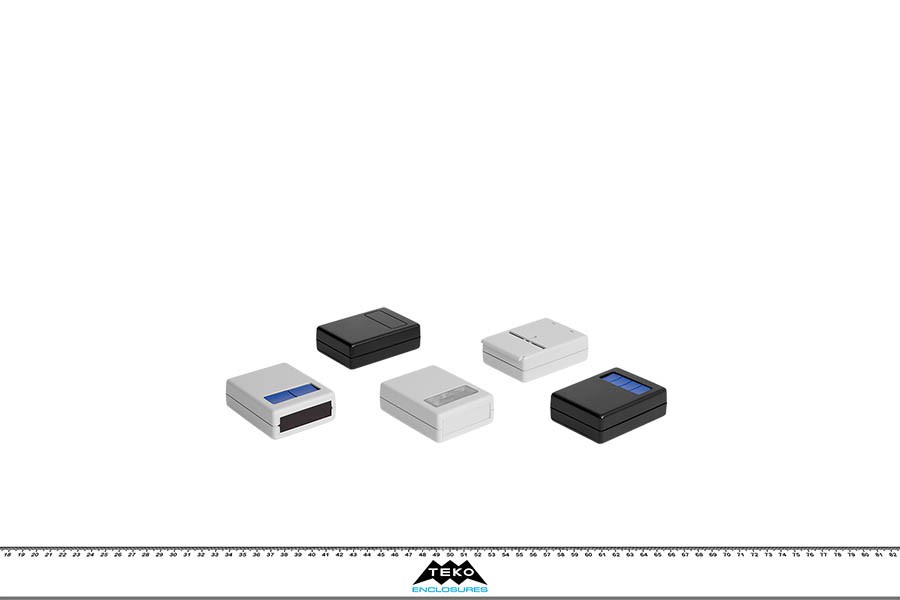

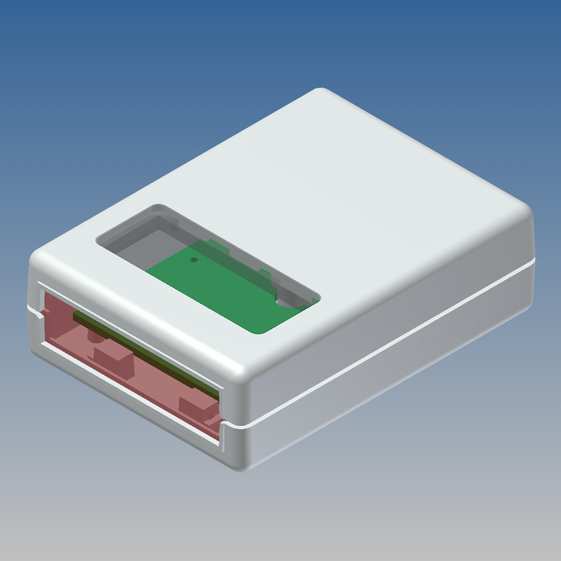

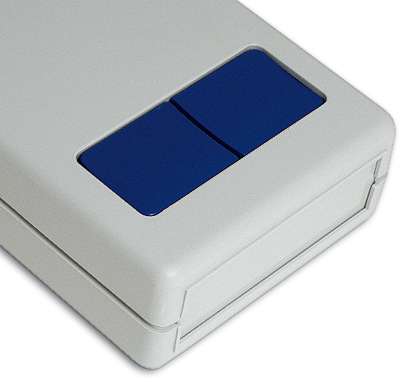

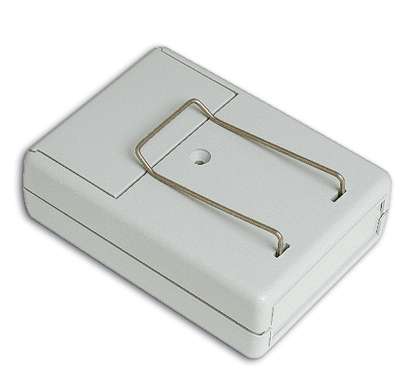

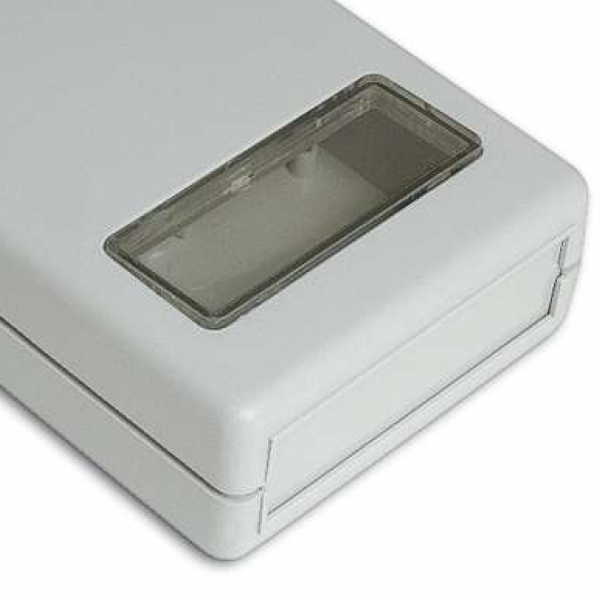

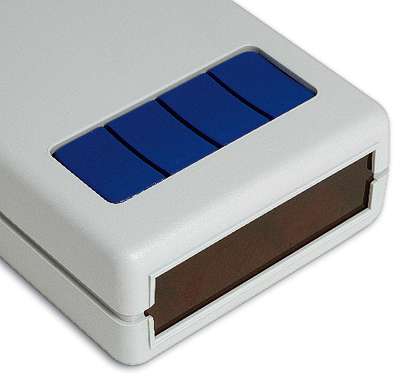

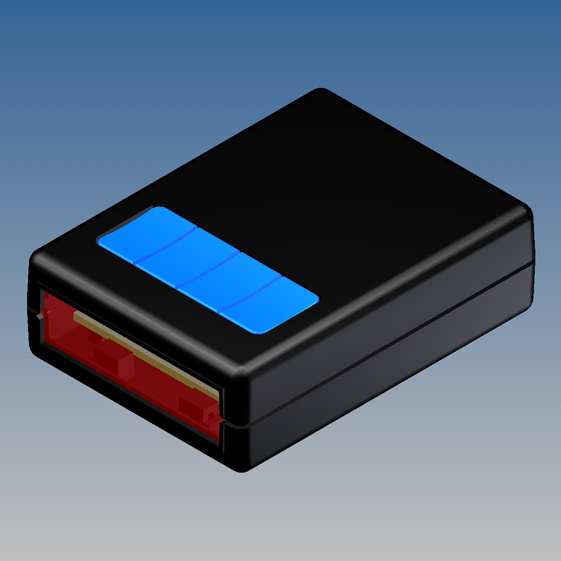

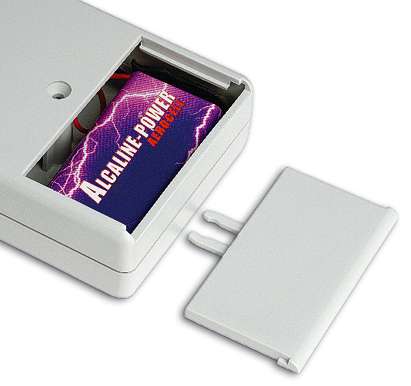

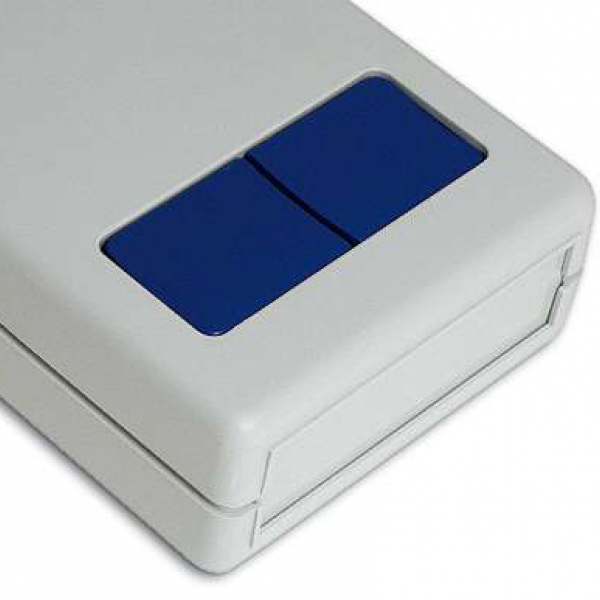

ABS enclosures with rounded corners. 9V battery compartment with a snap sliding lid. The model “10124” have one, two and four blue push-buttons set. The model “10005-DW1” have on the top a transparent window. The models “10005-B”, “10005-DW1” and “10124” have a front IR-panel replaceable by a plastic panel coloured as the box. Matt surface finish. Closing by only one screw. Upon request stainless steel clip (Mod. CL1).
Details
Products
| |
|---|---|

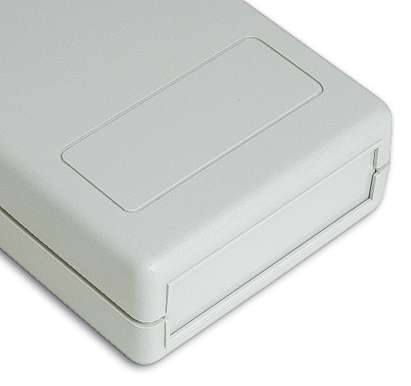

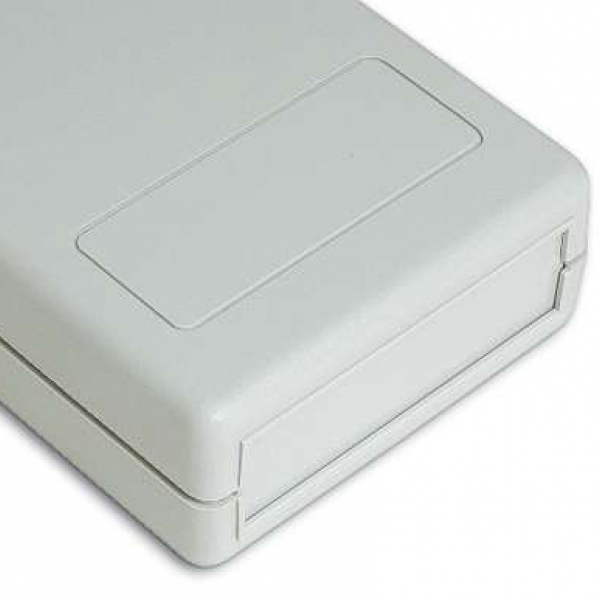

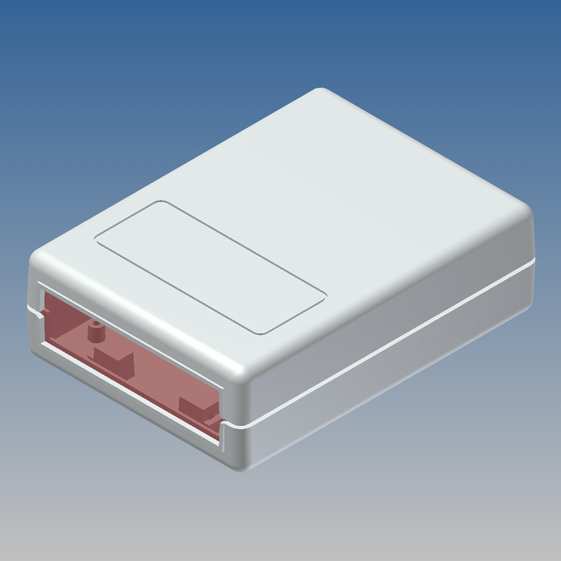

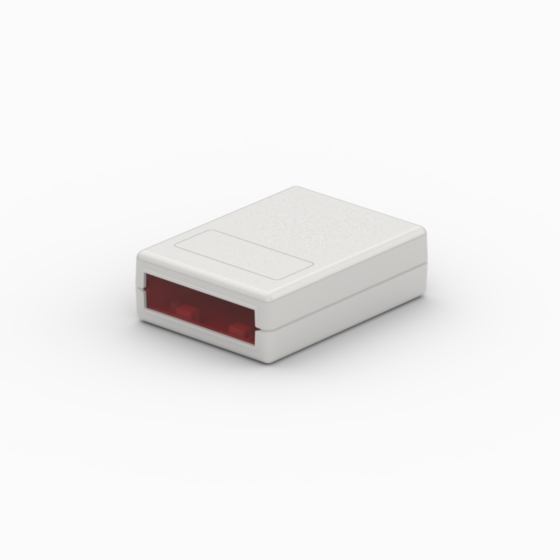

| Model | 10005-B.5 |
| L (mm) | 82 |
| W (mm) | 60 |
| H (mm) | 25 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 52,5 |
| MAX PCB W (mm) | 35 |
| Screws | 1 |
| Battery | 1 x 9V |
| Accessories |
CL1 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

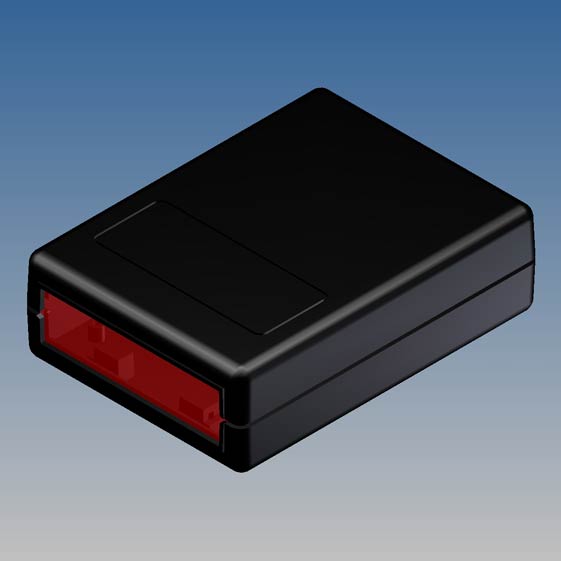

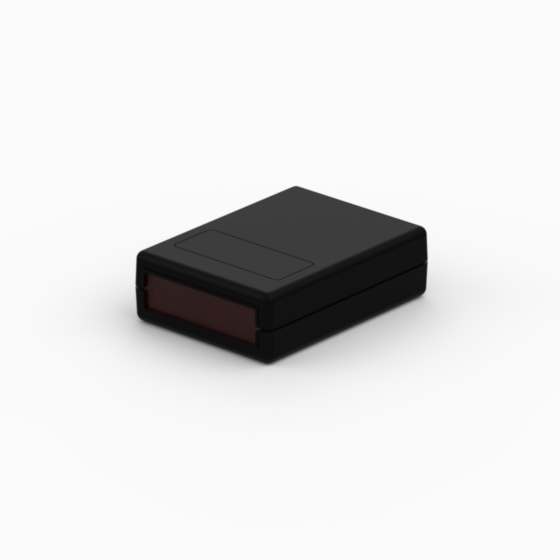

| Model | 10005-B.9 |
| L (mm) | 82 |
| W (mm) | 60 |
| H (mm) | 25 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 52,5 |
| MAX PCB W (mm) | 35 |
| Screws | 1 |
| Battery | 1 x 9V |
| Accessories |
CL1 |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | 10005-DW1.5 |
| L (mm) | 82 |
| W (mm) | 60 |
| H (mm) | 25 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 52,5 |
| MAX PCB W (mm) | 35 |
| Screws | 1 |
| Battery | 1 x 9V |
| Accessories |
CL1 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

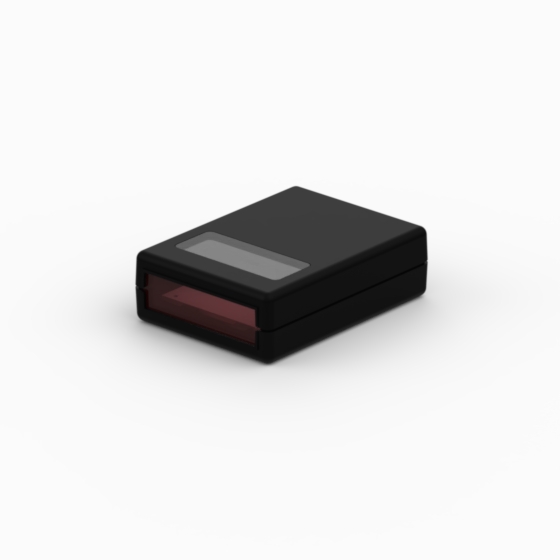

| Model | 10005-DW1.9 |
| L (mm) | 82 |
| W (mm) | 60 |
| H (mm) | 25 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 52,5 |
| MAX PCB W (mm) | 35 |
| Screws | 1 |
| Battery | 1 x 9V |
| Accessories |
CL1 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

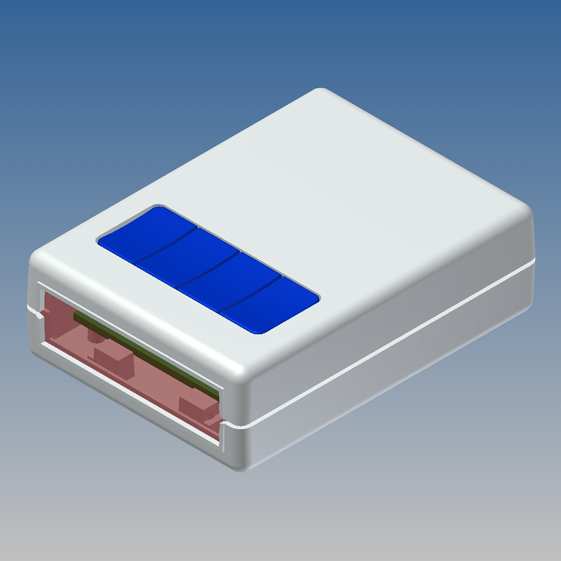

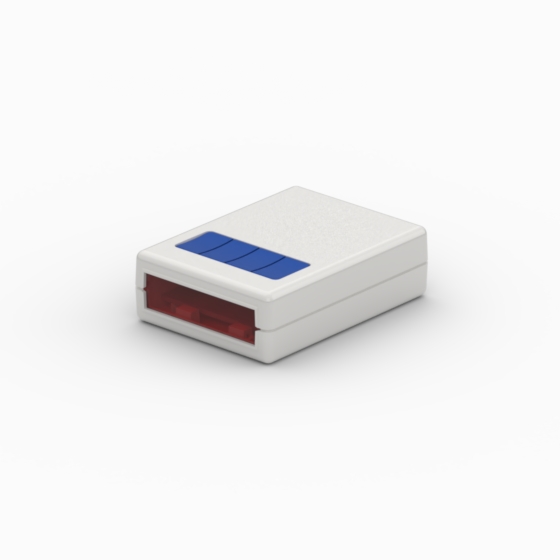

| Model | 10124.5 |
| L (mm) | 82 |
| W (mm) | 60 |
| H (mm) | 25 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 52,5 |
| MAX PCB W (mm) | 35 |
| Screws | 1 |
| Battery | 1 x 9V |
| Accessories |
CL1 |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | 10124.9 |
| L (mm) | 82 |
| W (mm) | 60 |
| H (mm) | 25 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 52,5 |
| MAX PCB W (mm) | 35 |
| Screws | 1 |
| Battery | 1 x 9V |
| Accessories |
CL1 |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
10005-B.5 | 82 | 60 | 25 |
9018 |
AG-ATY | 52,5 | 35 | 1 | 1 x 9V |
CL1 |
PDF DWG |
View
|
|
|
10005-B.9 | 82 | 60 | 25 |
9004 |
P2H-AT | 52,5 | 35 | 1 | 1 x 9V |
CL1 |
PDF DWG |
View
|
|
|
10005-DW1.5 | 82 | 60 | 25 |
9018 |
AG-ATY | 52,5 | 35 | 1 | 1 x 9V |
CL1 |
PDF DWG |
View
|
|
|
10005-DW1.9 | 82 | 60 | 25 |
9004 |
P2H-AT | 52,5 | 35 | 1 | 1 x 9V |
CL1 |
PDF DWG |
View
|
|
|
10124.5 | 82 | 60 | 25 |
9018 |
AG-ATY | 52,5 | 35 | 1 | 1 x 9V |
CL1 |
PDF DWG |
View
|
|
|
10124.9 | 82 | 60 | 25 |
9004 |
P2H-AT | 52,5 | 35 | 1 | 1 x 9V |
CL1 |
PDF DWG |
View
|
