Description

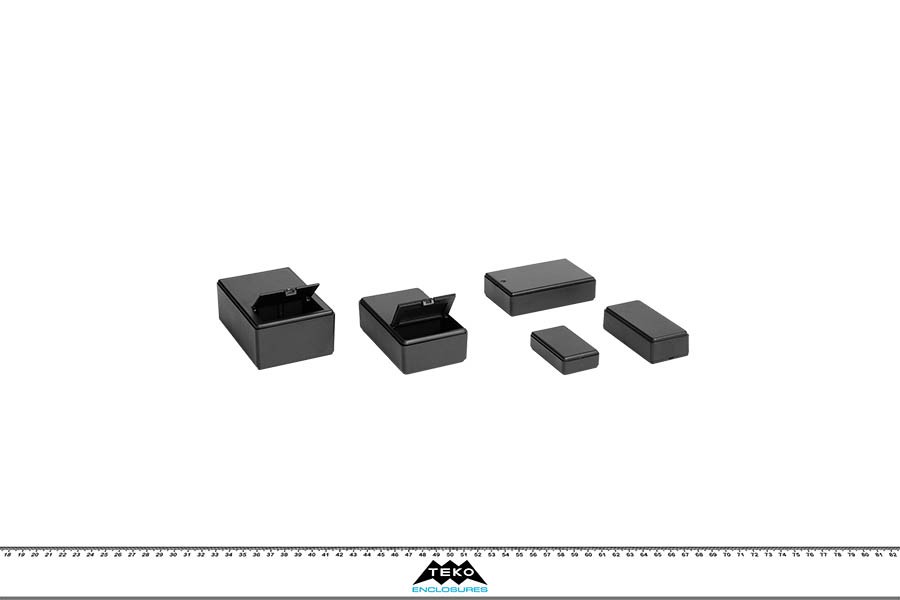

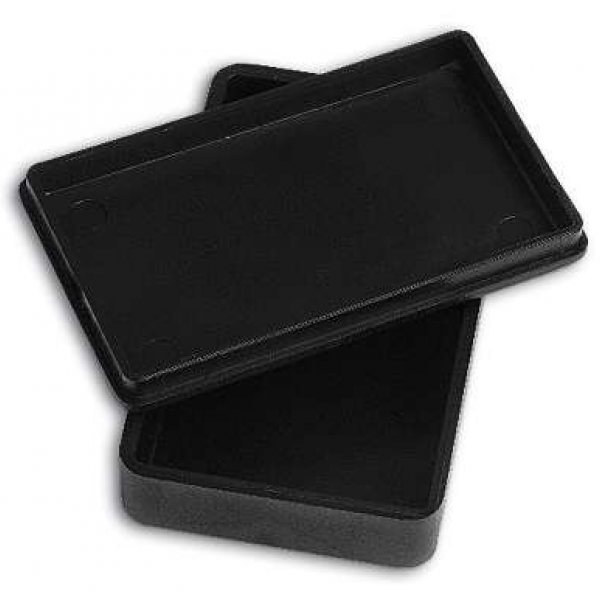

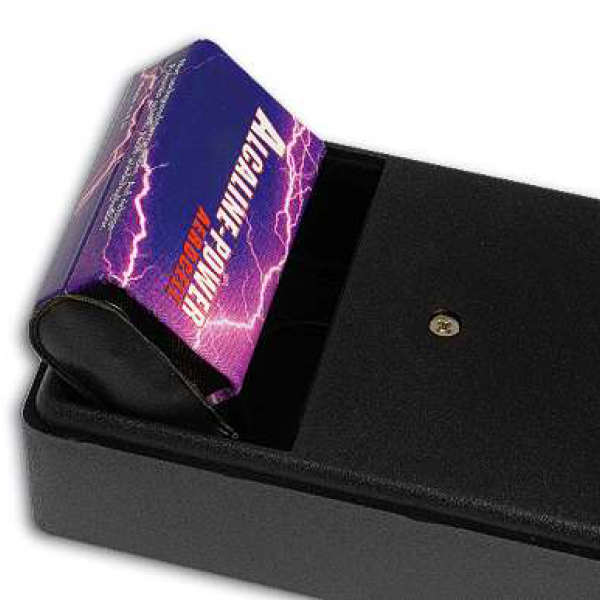

ABS enclosures with rounded corners. Base and cover have integral PCB mounting studs. The models “10011”, “10012-B” and “10013-B” have a closing by one screw. The model “10012-B” has a 9V battery compartment. The model “10013-B” has a compartment for two 9V batteries. Matt surface finish.
Details
Products
| |
|---|---|

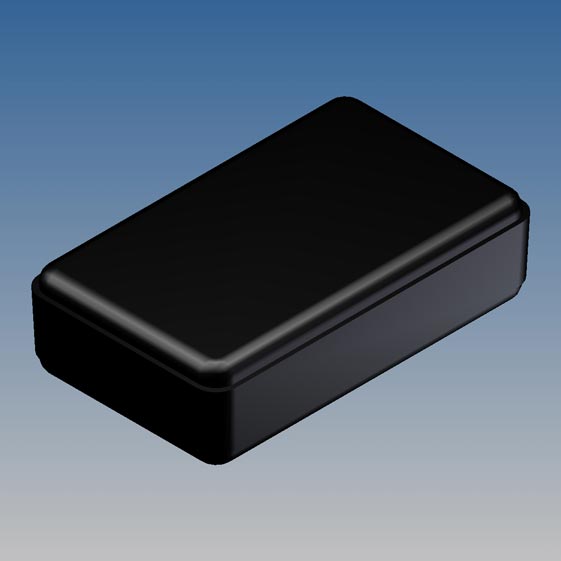

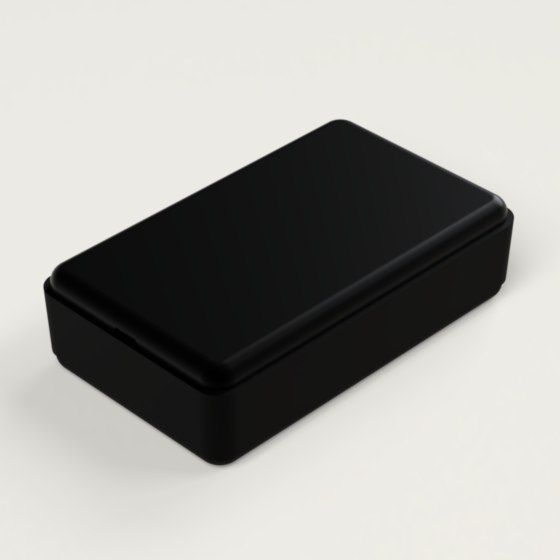

| Model | 10010.9 |
| L (mm) | 58 |
| W (mm) | 35 |
| H (mm) | 16 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 54,6 |
| MAX PCB W (mm) | 31,6 |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

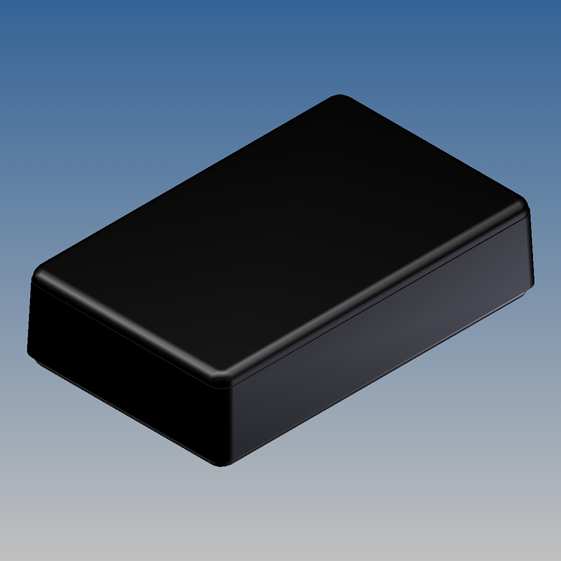

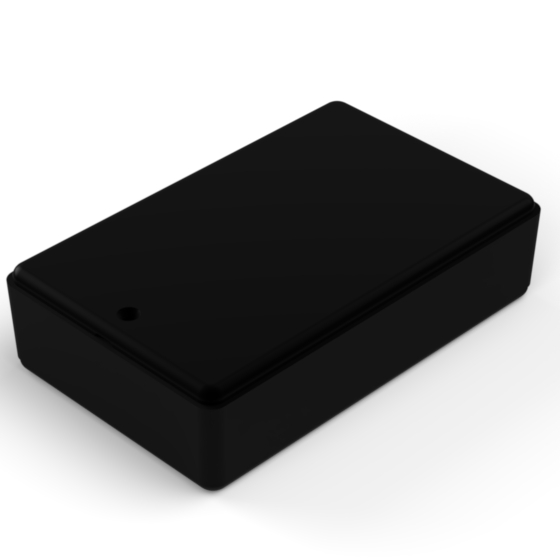

| Model | 10011.9 |
| L (mm) | 90 |
| W (mm) | 56 |
| H (mm) | 22 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 75,5 |
| MAX PCB W (mm) | 49 |
| Screws | 1 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

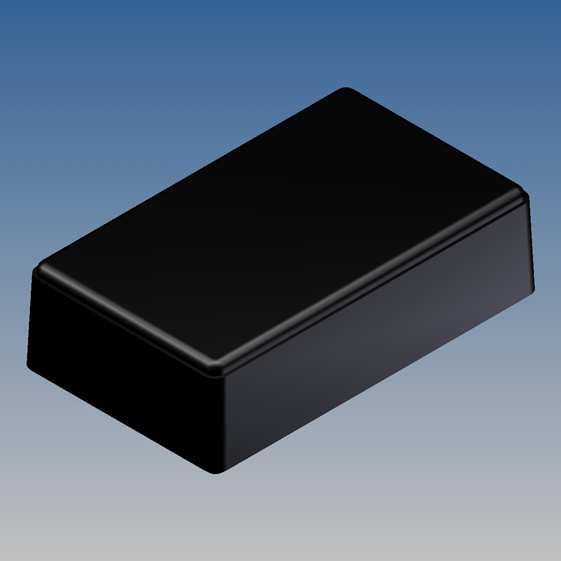

| Model | 10012-B.9 |
| L (mm) | 99,5 |
| W (mm) | 60 |
| H (mm) | 30 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 54,5 |
| MAX PCB W (mm) | 51,5 |
| Screws | 1 |
| Battery | 1 x 9V |
| Accessories |
AB9 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

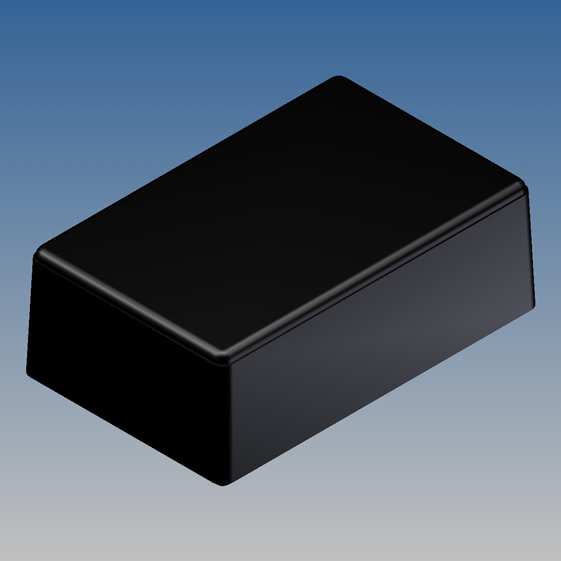

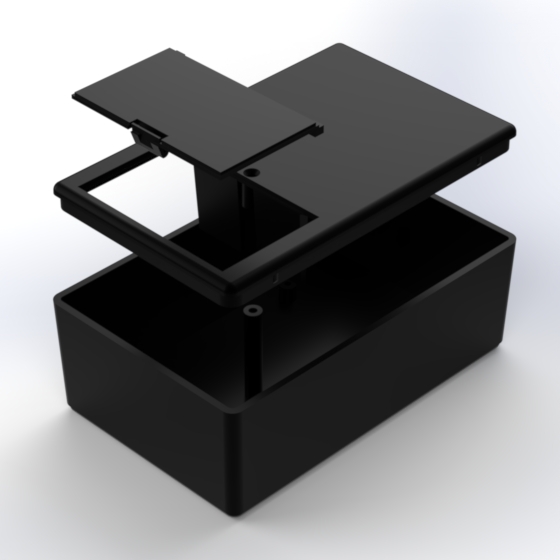

| Model | 10013-B.9 |
| L (mm) | 109 |
| W (mm) | 69,5 |
| H (mm) | 40 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 60,5 |
| MAX PCB W (mm) | 59,5 |
| Screws | 1 |
| Battery | 1 x 9V / 2 x 9V |
| Accessories |
AB9 |
| Drawings |
PDF DWG |
| Other |
View
|
| |

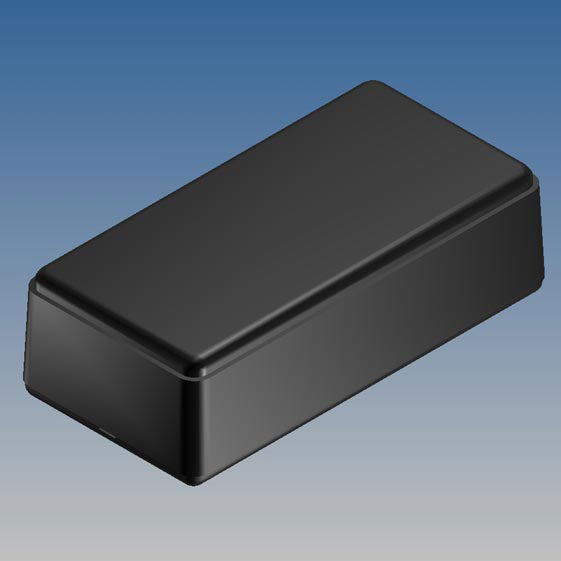

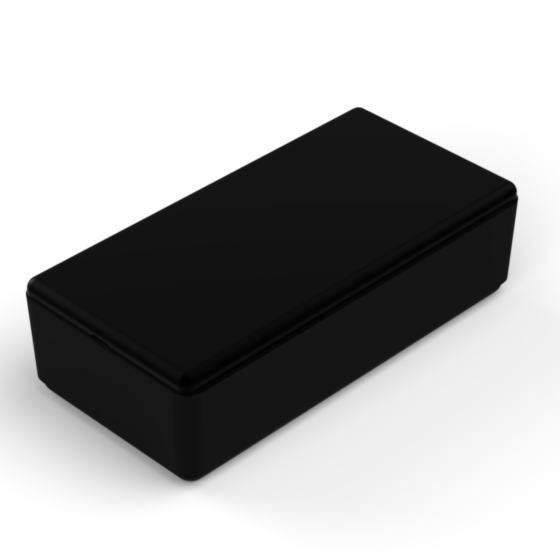

| Model | 10015.9 |
| L (mm) | 78 |
| W (mm) | 39 |
| H (mm) | 23 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 70 |
| MAX PCB W (mm) | 31,5 |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
10010.9 | 58 | 35 | 16 |
9004 |
P2H-AT | 54,6 | 31,6 | - | - |
PDF DWG |
View
|
|
|
|
10011.9 | 90 | 56 | 22 |
9004 |
P2H-AT | 75,5 | 49 | 1 | - |
PDF DWG |
View
|
|
|
|
10012-B.9 | 99,5 | 60 | 30 |
9004 |
P2H-AT | 54,5 | 51,5 | 1 | 1 x 9V |
AB9 |
PDF DWG |
View
|
|
|
10013-B.9 | 109 | 69,5 | 40 |
9004 |
P2H-AT | 60,5 | 59,5 | 1 | 1 x 9V / 2 x 9V |
AB9 |
PDF DWG |
View
|
|
|
10015.9 | 78 | 39 | 23 |
9004 |
P2H-AT | 70 | 31,5 | - | - |
PDF DWG |
View
|
