Description

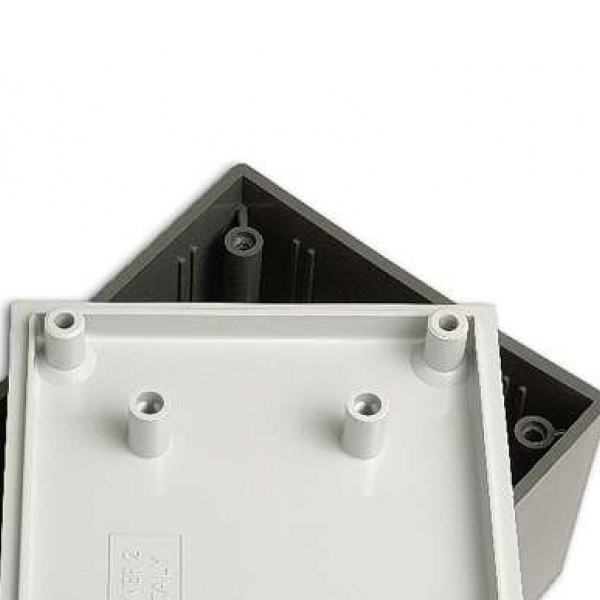

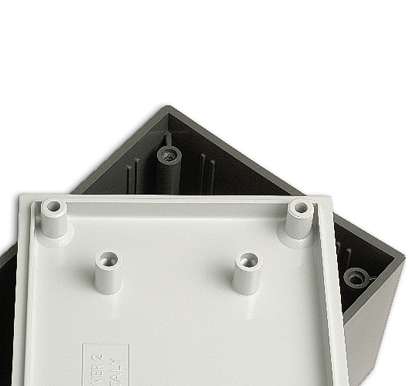

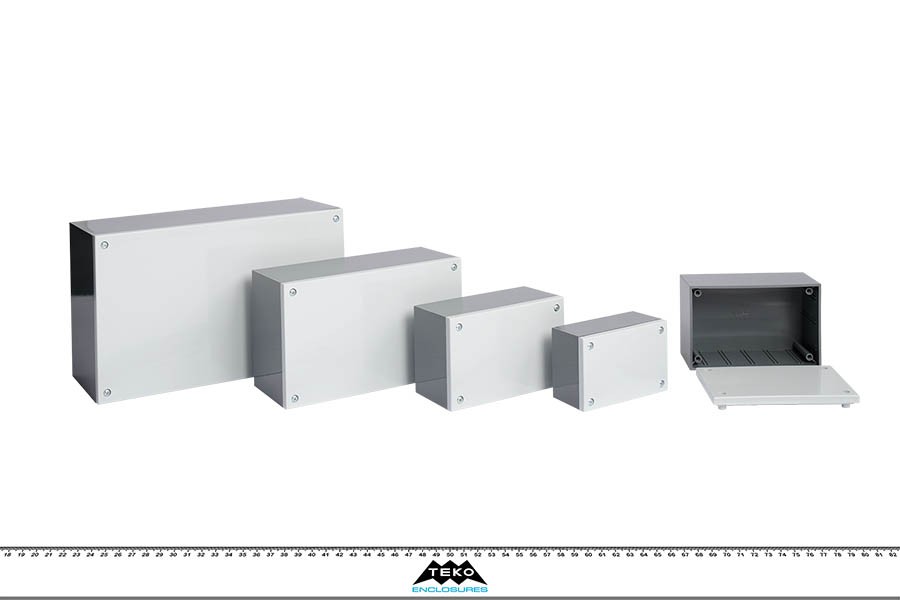

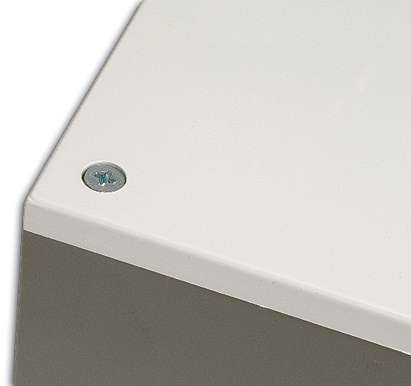

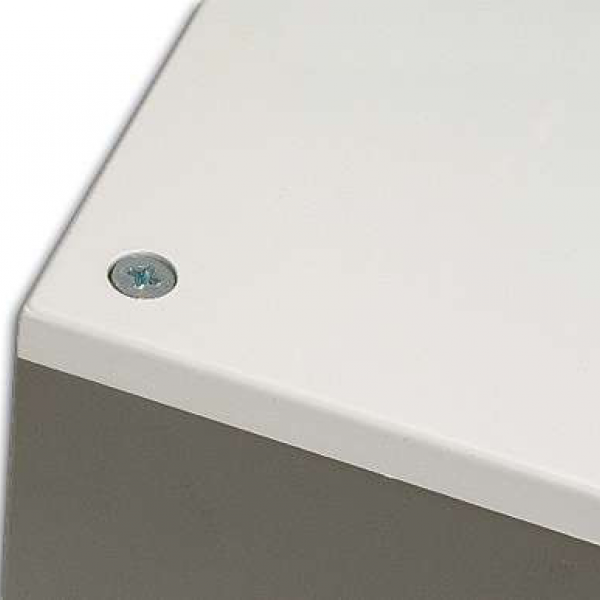

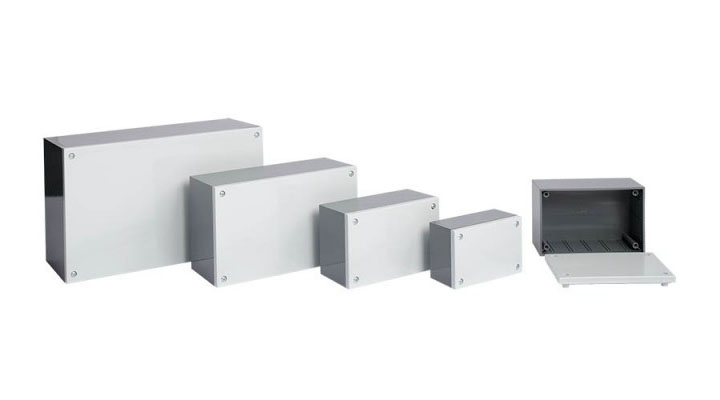

ABS enclosures with square corners and glossy surface finish. The base walls have integral PCB guides.“CP” series have two-tone colour scheme, the cover is always in light gray colour. Closing by four screws.
Products

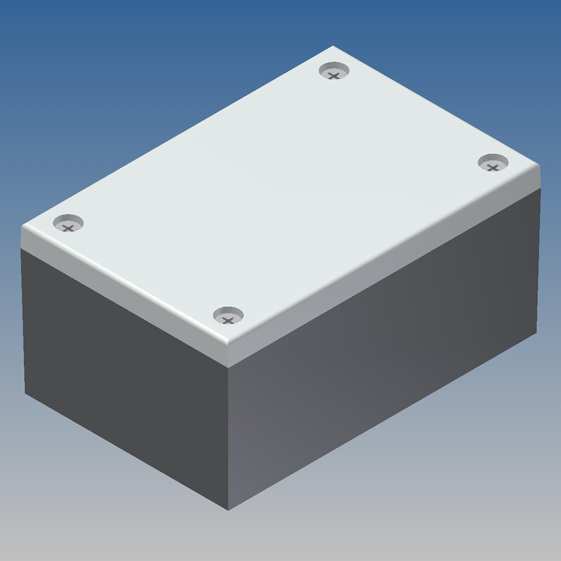

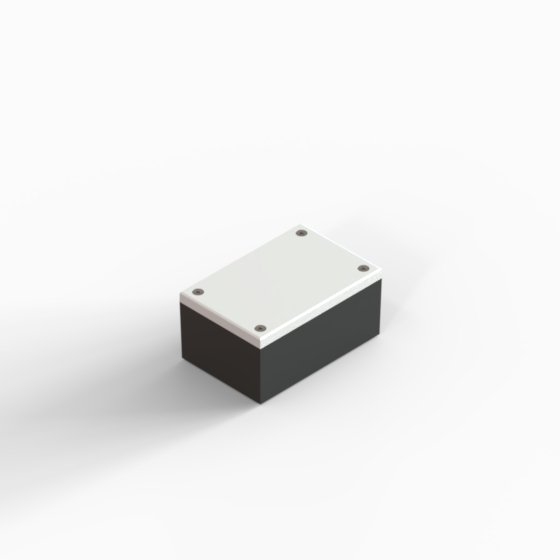

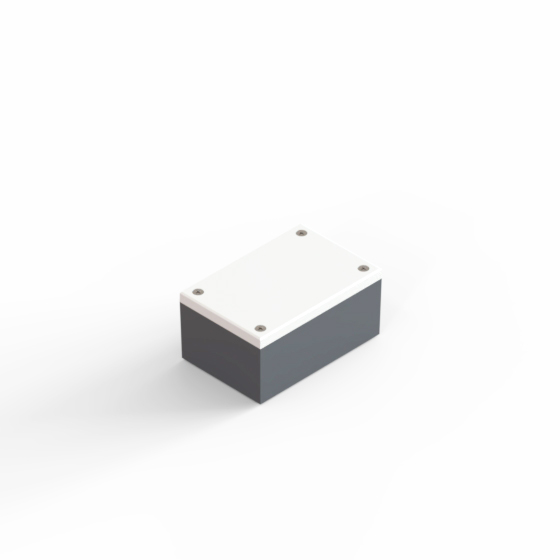

Model | CP/1.20 |
L (mm) | 85 |
W (mm) | 56 |
H (mm) | 41,4 |
Color (Ral) |
7012 9018 |
Material | N-UT - AG-ATY |
MAX PCB L (mm) | 80 |
MAX PCB W (mm) | 25 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

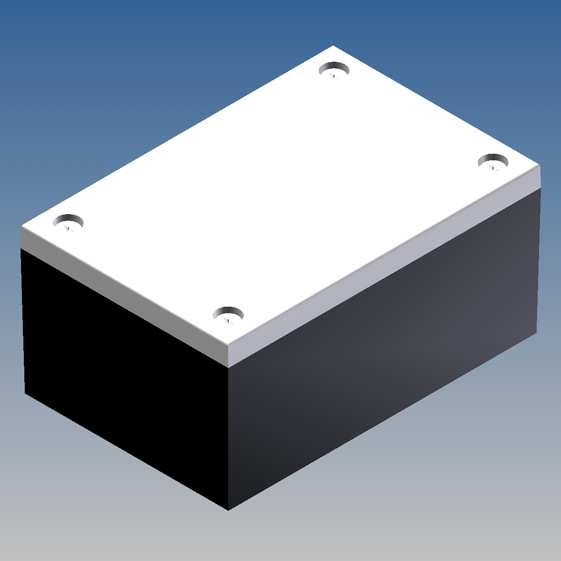

Model | CP/1.23 |
L (mm) | 85 |
W (mm) | 56 |
H (mm) | 41,4 |
Color (Ral) |
9004 9018 |
Material | P2H-AT - AG-ATY |
MAX PCB L (mm) | 80 |
MAX PCB W (mm) | 25 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

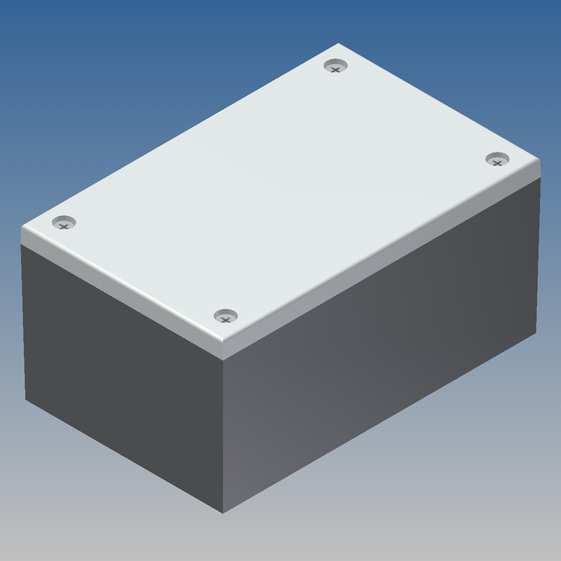

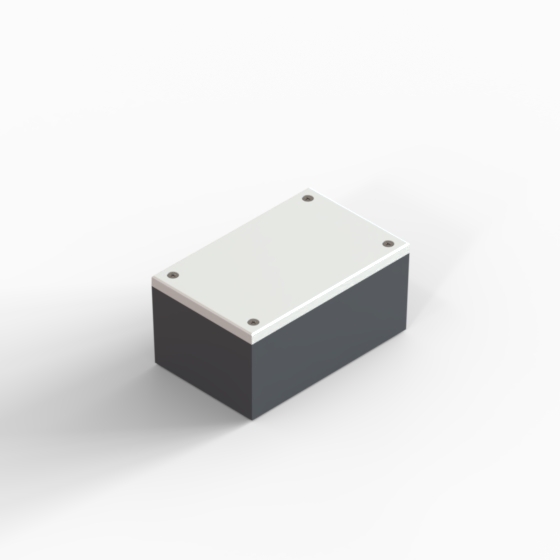

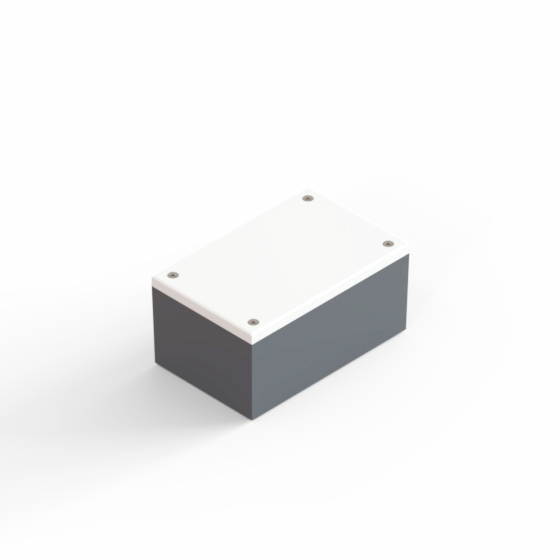

Model | CP/2.20 |
L (mm) | 110 |
W (mm) | 70 |
H (mm) | 53,9 |
Color (Ral) |
7012 9018 |
Material | N-UT - AG-ATY |
MAX PCB L (mm) | 103,5 |
MAX PCB W (mm) | 37 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

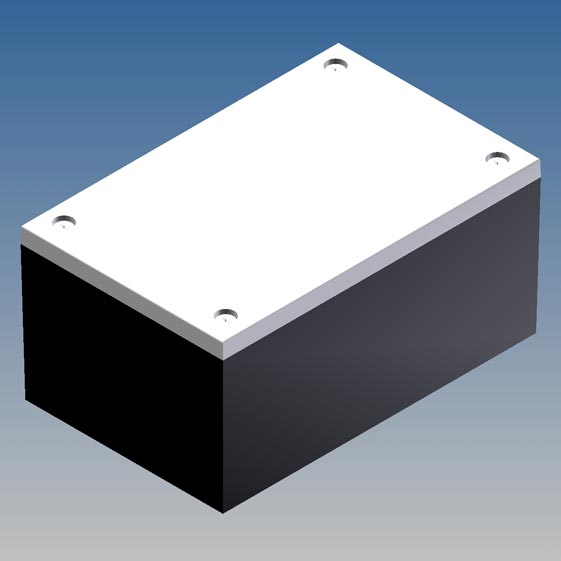

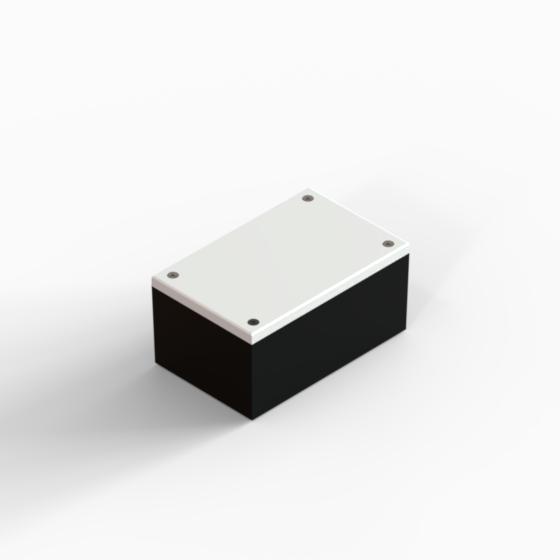

Model | CP/2.23 |
L (mm) | 110 |
W (mm) | 70 |
H (mm) | 53,9 |
Color (Ral) |
9004 9018 |
Material | P2H-AT - AG-ATY |
MAX PCB L (mm) | 103,5 |
MAX PCB W (mm) | 37 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

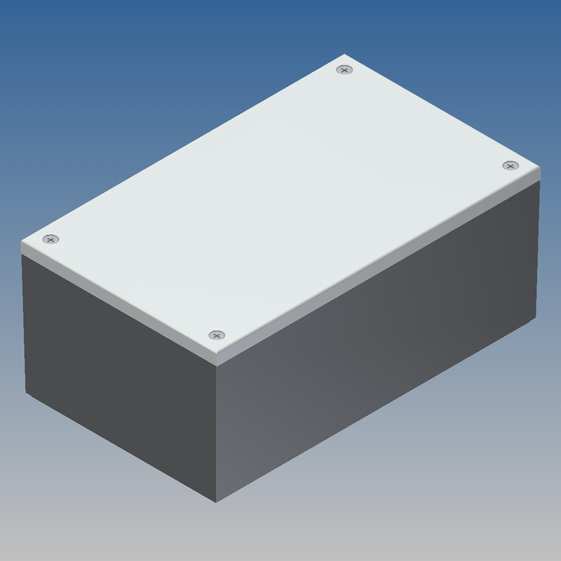

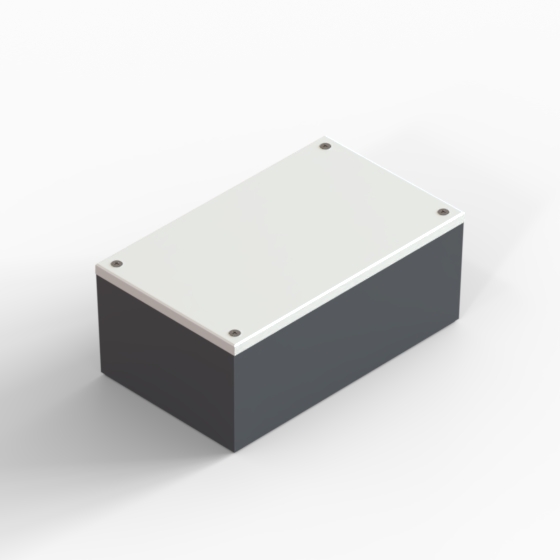

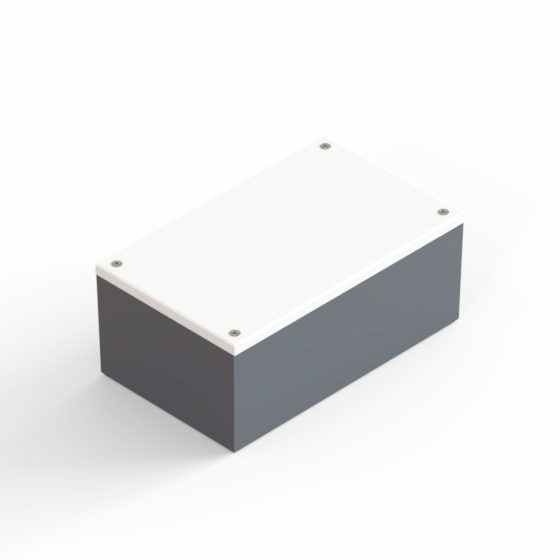

Model | CP/3.20 |
L (mm) | 160 |
W (mm) | 96 |
H (mm) | 66,9 |
Color (Ral) |
7012 9018 |
Material | N-UT - AG-ATY |
MAX PCB L (mm) | 154 |
MAX PCB W (mm) | 49 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

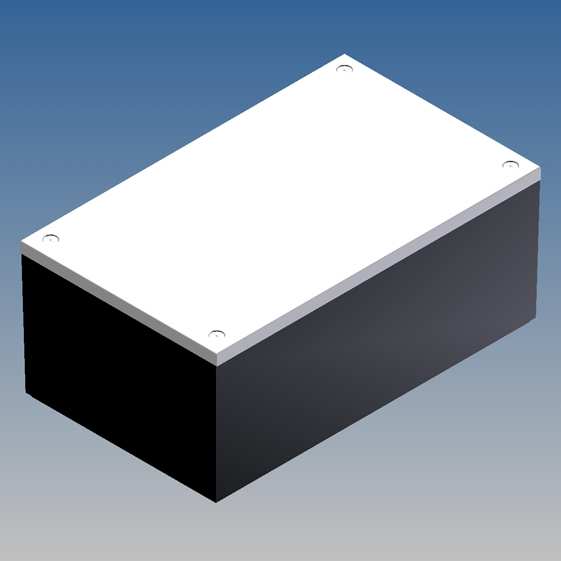

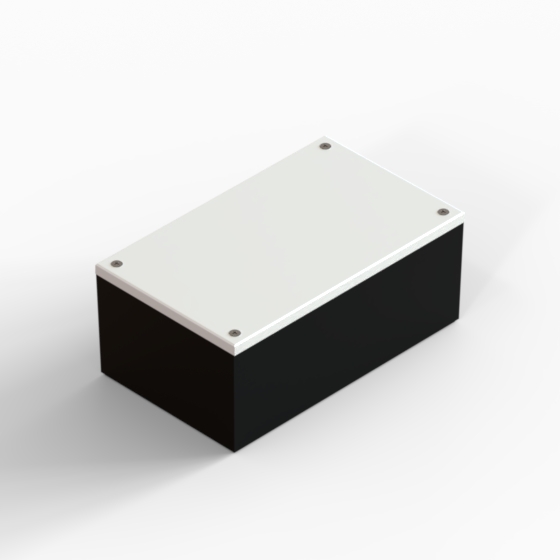

Model | CP/3.23 |
L (mm) | 160 |
W (mm) | 96 |
H (mm) | 66,9 |
Color (Ral) |
9004 9018 |
Material | P2H-AT - AG-ATY |
MAX PCB L (mm) | 154 |
MAX PCB W (mm) | 49 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

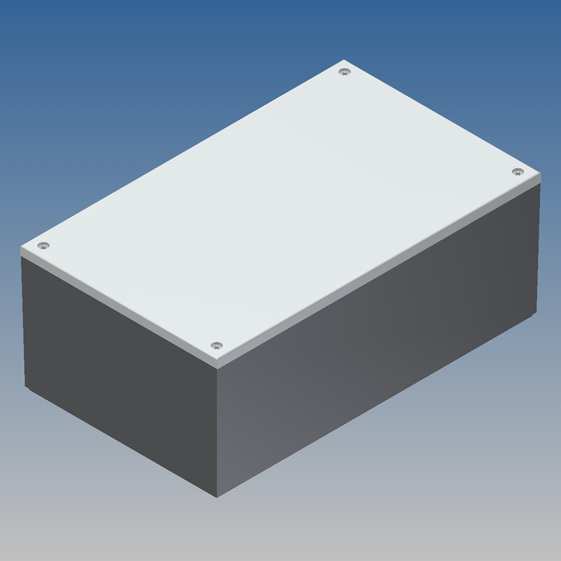

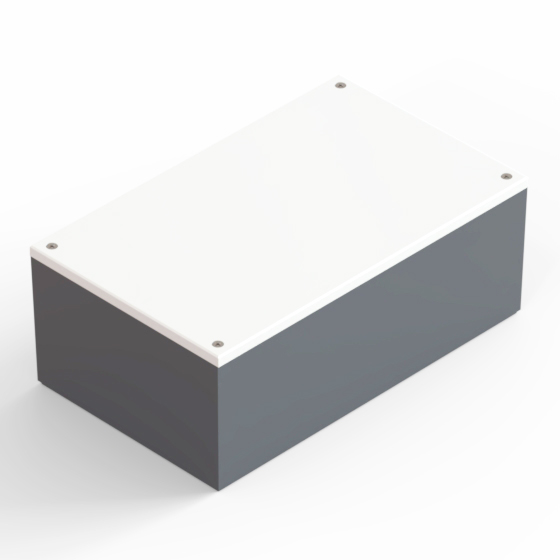

Model | CP/4.20 |
L (mm) | 215 |
W (mm) | 130 |
H (mm) | 82,9 |
Color (Ral) |
7012 9018 |
Material | N-UT - AG-ATY |
MAX PCB L (mm) | 208 |
MAX PCB W (mm) | 64,5 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|

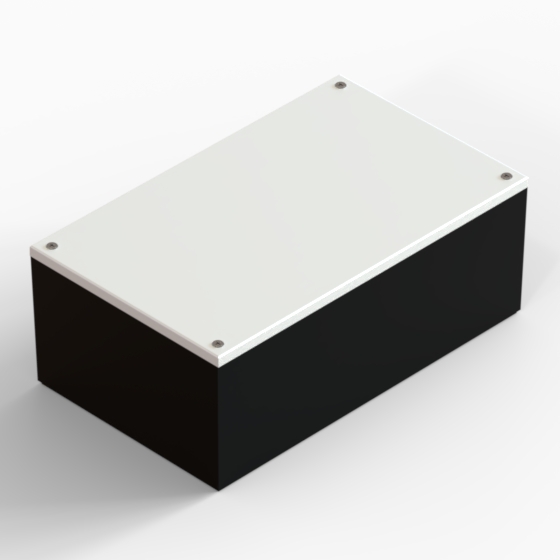

Model | CP/4.23 |
L (mm) | 215 |
W (mm) | 130 |
H (mm) | 82,9 |
Color (Ral) |
9004 9018 |
Material | P2H-AT - AG-ATY |
MAX PCB L (mm) | 208 |
MAX PCB W (mm) | 64,5 |
Screws | 4 |
Battery | - |
Accessories | |
Drawings |
PDF DWG |
Other |
View
|
Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CP/1.20 | 85 | 56 | 41,4 |
7012 9018 |
N-UT - AG-ATY | 80 | 25 | 4 | - |
PDF DWG |
View
|
||
CP/1.23 | 85 | 56 | 41,4 |
9004 9018 |
P2H-AT - AG-ATY | 80 | 25 | 4 | - |
PDF DWG |
View
|
||
CP/2.20 | 110 | 70 | 53,9 |
7012 9018 |
N-UT - AG-ATY | 103,5 | 37 | 4 | - |
PDF DWG |
View
|
||
CP/2.23 | 110 | 70 | 53,9 |
9004 9018 |
P2H-AT - AG-ATY | 103,5 | 37 | 4 | - |
PDF DWG |
View
|
||
CP/3.20 | 160 | 96 | 66,9 |
7012 9018 |
N-UT - AG-ATY | 154 | 49 | 4 | - |
PDF DWG |
View
|
||
CP/3.23 | 160 | 96 | 66,9 |
9004 9018 |
P2H-AT - AG-ATY | 154 | 49 | 4 | - |
PDF DWG |
View
|
||
CP/4.20 | 215 | 130 | 82,9 |
7012 9018 |
N-UT - AG-ATY | 208 | 64,5 | 4 | - |
PDF DWG |
View
|
||
CP/4.23 | 215 | 130 | 82,9 |
9004 9018 |
P2H-AT - AG-ATY | 208 | 64,5 | 4 | - |
PDF DWG |
View
|
